Mitsubishi Electric Ductless Systems
What is Duct Free?
For decades, split-zoning air-conditioning and heat pump systems have been the quiet solution for cooling and heating problems around the world. Our quiet and powerful systems have three main components: an indoor unit, outdoor unit, and remote controller. Installation is as simple as mounting the indoor and outdoor units, connecting the refrigerant lines, and making a few electrical connections.
Why Mitsubishi Electric Systems?
Our commitment to empower homeowners to create their own customized comfort is fueled by continual innovation and refinement. Here are some of the technologies that help cool and heat your home more efficiently and effectively:
Hot-start
The indoor unit’s fan only blows air when the coil has warmed to the desired temperature. An energy-saving measure, it also prevents drafts of cold air at start-up.
i-see Sensor™
This sensor scans the room and adjusts temperature and airflow automatically. Maintain consistent comfort by eliminating cold and hot spots.
H2i® Technology
Hyper-Heating INVERTER (H2i) technology is designed to provide comfortable indoor temperatures in extreme cold-climate conditions (as low as -13° F) while saving energy and money.
Zone Control
Why cool or heat rooms you don’t use? Why sweat or shiver in those you do? Zone control allows you to optimize the temperature of any space with an indoor unit to save energy and reduce costs. Create your own perfect comfort zones!
Quiet Operation
Indoor units run quiet as a whisper and outdoor units run quieter than a refrigerator. You have to hear it (or not) to believe it!
Enhanced Filtration Systems
Washable filters last up to 10 years and remove pollen, dust, dander and other allergens that reduce indoor air quality. Each room has its own filter to ensure pristine air.
Where Can Mitsubishi Electric Products Be Used?
If a room is too hot or too cold, Mitsubishi Electric Cooling & Heating can handle it! Mitsubishi split-zoning systems are specifically designed to improve the comfort level in an uncomfortably hot or cold room of an existing building. Because they don't require ductwork, they're the perfect heating and cooling systems for renovating older buildings that were constructed before air conditioning was available - even those with plaster walls and brick facades. The versatility and variety of applications for Mitsubishi Electric systems are virtually unlimited. They're an excellent choice for almost any spot cooling or heating situation, including enclosed sunrooms, upstairs bedrooms, classrooms, hospitals, nursing homes, restaurants, hotels, workout rooms, computer rooms, offices and churches.
They're also equipped with an anti-allergen filter and prevent the cross-flow of air with contaminants. And because they can be controlled by zone, it's easy to set the controls for the exact room temperature you want.
How does it work? Mitsubishi Electric Cooling & Heating can fit into almost any space because their innovative engineering optimizes the capabilities of the INVERTER technology and R410A refrigerant for more efficient systems with smaller indoor and outdoor units. R410A refrigerant is environmentally friendly, with zero Ozone Depletion Potential (ODP). The units themselves are also made of recyclable materials.
Control at Your Fingertips, Anytime, Anywhere!
Mitzubishi Ductless High wall Indoor Units
NAXWPH Indoor Ductless High Efficiency Heat PumpView Brochure |
---|
Model Family: NAXWPH |
Purpose: Heat & Cool |
Zone Capability: Single & Multi Zone |
Efficiency SEER2: Up to 33.1 SEER2 |
Efficiency EER2: N/A |
Efficiency HSPF2: Up to 13.5 HSPF2 |
Matching Outdoor Unit: Single-Zone: NAXSPB |
Matching Outdoor Unit: Multi-Zone: NAXMMX |
Energy Star Rated: Energy Star Rated |
Refrigerant Type: R-410A |
Number of Fan Speeds: N/A |
Sound Level: Quiet operation |
Wireless Remote: Multi-function wireless controller |
Factory Warranty Parts: 10-year limited warranty on compressor and functional parts. |
Manufacturer's Stated Benefits:
|
NAXWST Indoor Ductless Wall-Mounted Heat PumpView Brochure |
---|
Model Family: NAXWST |
Purpose: Heat & Cool |
Zone Capability: Single zone and multi zone |
Efficiency SEER2: Up to 24.6 SEER2 |
Efficiency EER2: N/A |
Efficiency HSPF2: Up to 12.8HSPF2 |
Matching Outdoor Unit: Single-Zone: NAXSST |
Matching Outdoor Unit: Multi-Zone: NAXMMX |
Energy Star Rated: ENERGY STAR® certified |
Refrigerant Type: R-410A |
Number of Fan Speeds: Vertical air swing |
Sound Level: Quiet operation |
Wireless Remote: Yes |
Factory Warranty Parts: 10-year limited warranty on compressor and functional parts. |
Manufacturer's Stated Benefits:
|
NAXWMT Indoor Ductless Pro Line Heat PumpView Brochure |
---|
Model Family: NAXWMT |
Purpose: Heat & Cool |
Zone Capability: Single Zone |
Efficiency SEER2: |
Efficiency EER2: |
Efficiency HSPF2: |
Matching Outdoor Unit: Single-Zone: NAXSMT |
Matching Outdoor Unit: Multi-Zone: N/A |
Energy Star Rated: Energy Star Rated |
Refrigerant Type: R-410A |
Number of Fan Speeds: Four fan speeds |
Sound Level: Quiet operation |
Wireless Remote: Yes |
Factory Warranty Parts: 5-year limited warranty on compressor and functional parts. |
Manufacturer's Stated Benefits:
|
MSZ-EF Designer Indoor UnitView Brochure |
---|
Model Family: MSZ-EF |
Purpose: Heat and Cool |
Zone Capability: Single Zone |
Efficiency SEER2: |
Efficiency EER2: |
Efficiency HSPF2: |
Matching Outdoor Unit: Single-Zone: |
Matching Outdoor Unit: Multi-Zone: |
Energy Star Rated: No |
Refrigerant Type: R-410A |
Number of Fan Speeds: Vertical air swing |
Sound Level: Quiet operation |
Wireless Remote: Yes |
Factory Warranty Parts: 5-year parts limited warranty |
Manufacturer's Stated Benefits:
|
Mitsubishi Electric Alternate Indoor Ductless Products
Horizontal Ducted Heat Pump SEZ-KDView Brochure |
---|
Model Family: SEZ-KD |
Purpose: Heat/Cool |
Zone Capability: Single & Multi-Zone |
Efficiency SEER2: up to 18.8 SEER |
Efficiency EER2: Up to 12.8 EER |
Efficiency HSPF2: up to 11 HSPF |
Matching Outdoor Unit: Single-Zone: SUZ-KA |
Matching Outdoor Unit: Multi-Zone: MXZ-B |
Energy Star Rated: Yes |
Refrigerant Type: R-410A |
Number of Fan Speeds: 3 |
Sound Level: Whisper Quiet |
Wireless Remote: No |
Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration |
Manufacturer's Stated Benefits:
|
Ceiling Recessed Indoor Unit SLZ-KFView Brochure |
---|
Model Family: SLZ-KF |
Purpose: Heat/Cool |
Zone Capability: Single & Multi-Zone |
Efficiency SEER2: up to 22.4 SEER |
Efficiency EER2: Up to 13,4 EER |
Efficiency HSPF2: up to 12.2 HSPF |
Matching Outdoor Unit: Single-Zone: SUZ-KA |
Matching Outdoor Unit: Multi-Zone: |
Energy Star Rated: Some Models Energy Star Rated |
Refrigerant Type: R-410A |
Number of Fan Speeds: 3 |
Sound Level: Whisper Quiet |
Wireless Remote: No |
Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration |
Manufacturer's Stated Benefits:
|
Floor-Mount Inside Unit MFZ-KJView Brochure |
---|
Model Family: MFZ-KJ |
Purpose: Heat/Cool |
Zone Capability: Multi zone and Single Zone |
Efficiency SEER2: up to 28.2 SEER |
Efficiency EER2: Up to 15.8 EER |
Efficiency HSPF2: up to 13.0 HSPF |
Matching Outdoor Unit: Single-Zone: MUFZ-KJ |
Matching Outdoor Unit: Multi-Zone: MXZ-C |
Energy Star Rated: ENERGY STAR® |
Refrigerant Type: R-410A |
Number of Fan Speeds: 5 Fan Speeds |
Sound Level: Whisper Quiet |
Wireless Remote: Yes |
Factory Warranty Parts: 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration |
Manufacturer's Stated Benefits:
|

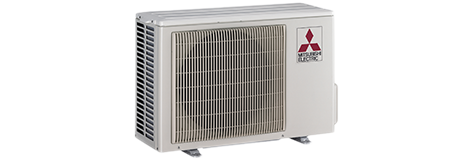

Mitzubishi Ductless Outdoor Heat Pumps
NAXSPB Outdoor Ductless Heat PumpView Brochure |
---|
Model Family: NAXSPB |
Purpose: Heat & Cool |
Zone Capability: Single zone |
Efficiency SEER2: Up to 33.1 SEER2 |
Efficiency EER2: N/A |
Efficiency HSPF2: Up to 13.5 HSPF2 |
Energy Star Rated: ENERGY STAR® |
Refrigerant Type: R-410A |
Sound Level: Quiet operation |
Compressor: INVERTER-driven compressor |
Factory Warranty Parts: 10-year limited warranty on compressor and functional parts. |
Factory Warranty Compressor: 10-year limited warranty on compressor and functional parts. |
Manufacturer's Stated Benefits:
|
NAXSST Outdoor Ductless Heat PumpView Brochure |
---|
Model Family: NAXSST |
Purpose: Heat & Cool |
Zone Capability: Single zone |
Efficiency SEER2: Up to 24.6 SEER2 |
Efficiency EER2: N/A |
Efficiency HSPF2: Up to 12.8 HSPF2 |
Energy Star Rated: ENERGY STAR® certified |
Refrigerant Type: R-410A |
Sound Level: Quiet operation |
Compressor: INVERTER-driven compressor |
Factory Warranty Parts: 10-year limited warranty on compressor and functional parts. |
Factory Warranty Compressor: 10-year limited warranty on compressor and functional parts. |
Manufacturer's Stated Benefits:
|
NAXSMT Pro Line Outdoor Ductless Heat PumpView Brochure |
---|
Model Family: NAXSMT |
Purpose: Heat & Cool |
Zone Capability: Single zone |
Efficiency SEER2: Up to 18 SEER2 |
Efficiency EER2: N/A |
Efficiency HSPF2: Up to 10 HSPF2 |
Energy Star Rated: ENERGY STAR® |
Refrigerant Type: R-410A |
Sound Level: Quiet operation |
Compressor: INVERTER-driven compressor |
Factory Warranty Parts: 10-year limited warranty on compressor and functional parts. |
Factory Warranty Compressor: 10-year limited warranty on compressor and functional parts. |
Manufacturer's Stated Benefits:
|
NAXSKS Outdoor Ductless Heat PumpView Brochure |
---|
Model Family: NAXSKS |
Purpose: Heat & Cool |
Zone Capability: Single zone |
Efficiency SEER2: N/A |
Efficiency EER2: N/A |
Efficiency HSPF2: N/A |
Energy Star Rated: No |
Refrigerant Type: R-410A |
Sound Level: Quiet operation |
Compressor: INVERTER-driven compressor |
Factory Warranty Parts: 10-year limited warranty on compressor and functional parts. |
Factory Warranty Compressor: 10-year limited warranty on compressor and functional parts. |
Manufacturer's Stated Benefits:
|
Mitzubishi Ductless High Wall Indoor Units-Cooling Only
NAY Air ConditionerView Brochure |
---|
Model Family: NAYWST |
Purpose: Cooling |
Zone Capability: Single Zone |
Efficiency SEER2: Up to 24.6 SEER2 |
Efficiency EER2: N/A |
Matching Outdoor Unit: Single-Zone: NAYSST |
Matching Outdoor Unit: Multi-Zone: N/A |
Energy Star Rated: ENERGY STAR® |
Refrigerant Type: R-410A |
Number of Fan Speeds: Vertical air swing on all units |
Sound Level: Quiet operation |
Wireless Remote: Yes |
Factory Warranty Parts: 10-year limited warranty on compressor and functional parts |
Manufacturer's Stated Benefits:
|
Mitzubishi Ductless Outdoor Air Conditioners
NAYSST Air Conditioner Outdoor UnitView Brochure |
---|
Model Family: NAYSST |
Purpose: Cool Only |
Efficiency SEER2: Up to 24.6 SEER2 |
Efficiency EER2: N/A |
Zone Capability: Single Zone |
Energy Star Rated: ENERGY STAR® certified |
Refrigerant Type: R-410A |
Sound Level: Quiet operation |
Compressor: Inverter- Driven Compressor |
Factory Warranty Parts: 10-year limited warranty on compressor and functional parts. |
Factory Warranty Compressor: 10-year limited warranty on compressor and functional parts. |
Manufacturer's Stated Benefits:
|
